The VF360 Alerts

Map Dashboard

The Map Dashboard view allows you to see beside the geographic distribution and the status of your accounts, the global number of events processed in every flow step, for all the accounts together.



In this view you cannot view information per account. You can see the graphs of up to five flow steps.

The Processed files in the system (past 12 months) parameter displays the number of events processed by all the monitored flow steps of all the accounts within the past 12 months, going back from the current date.

The Processed files in the system parameter displays the number of events processed by all the monitored flow steps of all the accounts since they started to use Coretex.

The tool displays five graphs at a time. Each graph shows the information for the previous 12 months, counting from the current month. The number on the X axis represents the serial number of the month in the calendar year, the last number on the right side being the current month (June in the example below).

The Y axis displays the total number of events processed in the selected flow step type, for all the accounts.

In the graphs, the flow step name is in fact the flow step type, regardless of the actual name of the input flow step in the different workflows. For example, the type is Input, although in the workflow it might be named PDF In, or HotFolder, or FileIn, and so on.



To see the information on a specific month, hover your mouse over its bar in the graph and view the tooltip.

To change the flow step type, hover your mouse over the graph and select the icon. In the Choose Flow Step screen, select the required flow step type.

The map displays the location and the status of your accounts, as transmitted by the Coretex StatusReportAdapter of each monitored flow step of each account.

Hover your mouse over a vertical graph bar to view the month and the processed file number.

You can zoom in (), zoom out (), move the map to display another region (), select full screen view ().

Account's states:

WORKFLOW STATE

DESCRIPTION

Working state

(FLASHING green DOT)

An account is in working state if they have at least a predefined number of events successfully processed in two minutes.

The system administrator defines the number of events in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Working state.

Idle state

(steady green DOT)

An account is in idle state if they have not processed any event for at least a predefined period of time.

The system administrator defines the number of events in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Idle state.

Error state

(Steady red DOT)

An account is in error state if they have at least a predefined number of events ending in error in a two-minute period.

The system administrator defines the number of events in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Error state.

An account is considered back in working state if there are no errors for at least a predefined number of minutes. The administrator sets this number of minutes in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Back to working state.

CONSTANT ERROR STATE

(FLASHING RED DOT)

An account is in this error state if at least a predefined number of events ended in error in a two-minute interval.

The system administrator defines the number of events in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Fatal error.

An account is considered back in working state if there are no errors for at least a predefined number of minutes. The administrator sets this number of minutes in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Back to working state.

NO KEEP ALIVE FOR WORKFLOW

(FLASHING ORANGE DOT)

For a account to send a keep alive signal, the Workflow KeepAlive monitoring toggle switch must be ON in > Accounts and Users > Accounts > Edit Accounts > Flow Step Parameters and the account has at least one monitored flow step.

An account is in this state if it does not send a keep alive signal to VF360 for a predefined number of minutes. The administrator sets this number in   > Profile Settings > Administrator Account Settings > Map Dashboard Settings > Time to no KeepAlive.



SERVER ALERTS

DESCRIPTION

ACTIVE SERVER ERROR

(RED TRIANGLE)

This is a hardware alert. The Agent application permanently monitors the OS usage (CPU, memory, disks), as well as the usage of up to five specified folders on the system it is installed on. If the usage exceeds the limit set for the parameters, an error alert is issued.

The system administrator defines the limits in   > Accounts and Users > Accounts > Server Monitoring > Server.

NO KEEP ALIVE FOR HARDWARE

(FLASHING ORANGE TRIANGLE)

The agent installed on the account's server periodically sends KeepAlive messages, at time intervals the system administrator sets in > Profile Settings > Administrator Account Settings > Server monitoring parameters > H/W KeepAlive interval.

The system administrator defines the time interval after which, if no new KeepAlive message arrives, a No KeepAlive alert is sent, in   > Profile Settings > Administrator Account Settings > Server monitoring parameters > H/W no KeepAlive time.

MAINTENANCE MODE ON

(BLUE DOT)

The account has the Maintenance mode ON for a specific server.

Hover your mouse over a green circle which represents the location of a account to see in a tool tip its name and location.



From the Map Dashboard view, select a account’s icon to navigate to its Table View, to its Production System, to its Server Table (the server's alert history), its Workflow Table (the workflow's alert history), and so on. The navigation target depends on the account's state.

Alerts Dashboard

The Alerts Dashboard view helps you  monitor your account' workflow steps and servers based on their geographical distribution.

The tables display the latest four errors, sorted by date and time. Only the active errors are displayed. The errors which are recovered are removed from this list, while the alerts older than 24 hours are removed from the table.

The Workflow Error table lists the account's workflow-related alerts.

FIELD

DESCRIPTION

ACCOUNT NAME

The name of the account, as defined in the Company name field in > Accounts and Users > Accounts > "Edit Account" tab for the account.

STEP TYPE

The flow step type.

STEP NAME

The flow step name.

SEVERITY

The severity defines the type of alert for each alert record:

Error - the account is in error state.

Warning - the account is in constant error state.

For these two types:

  • The account icon state changes accordingly on Map and Alerts Dashboards;

  • A new record is added to the Servers Alerts History table with the actual time in the Error time field;

  • The active (non-resolved) error has an empty Recovery time field.

  • Once the Recovery state is received from XML:

    • The account icon receives the OK state on the Map Dashboard and on the Alerts Dashboard;

    • The Recovery time value is added to the error record on the Servers Alerts History table;

Communication - the account is in No KeepAlive for Workflow state.

  • The account icon state changes accordingly on Map and Alerts Dashboards, to a flashing orange triangular icon;

  • A new record is added to the Servers Alerts History table with the actual time in the Error time field.

Maintenance - the account performs scheduled maintenance works

  • The account icon state changes accordingly on the Map Dashboard and on the Alerts Dashboard to a blue dot icon;

  • New record is added to the Servers Alerts History table with Maintenance start time in Error time field;

  • Once the Maintenance ends, the Maintenance end time is written in the Recovery Time field.

Shut Down - the system has performed a graceful shutdown (the computer is turned off by a software function and the operating system is allowed to perform its tasks of safely shutting down processes and closing connections). A graceful shut down during maintenance does not count for the SLA calculation.

Email notifications are sent to the following users when the Server state changes:

  • Root Administrator and Global Users with who have the H/W Errors toggle ON for Hardware Alerts and Software/Module Errors toggle ON for System alerts.

  • Monitoring User, Accounts, View User with Operator toggle ON.

  • Monitoring User with Operator toggle ON (he receives notifications only for those accounts accessible to him).

ERROR TIME

The date and time values for the start time of an error state, in the account's time zone.

RECOVERY TIME

The date and time values for the end time of an error state, in the account's time zone.

The Servers Error table lists the account's server-related errors. It displays the latest four workflow errors, sorted by date and time. Only the active errors are displayed. The errors which are recovered are removed from this list, while the alerts older than 24 hours are removed from this table.

FIELD

DESCRIPTION

Account NAME

The name of the account, as defined in the Company name field in > Accounts and Users > Accounts > "Edit Account" tab for the account.

SERVER

The name of the monitored server.

PRODUCT NAME

The name of the monitored software system.

MODULE

The name of the monitored module in the system.

SEVERITY

The severity defines the type of alert for each record:

Error - the account is in error state.

Warning - the account is in constant error state.

Communication - the account is in no KeepAlive for hardware.

Maintenance - the account is in maintenance state.

Shut down - the account is in graceful shutdown mode.

ERROR TIME

The date and time values for the start time of an error state, in the account's time zone.

RECOVERY TIME

The date and time values for the end time of an error state, in the account's time zone.

The Chart View

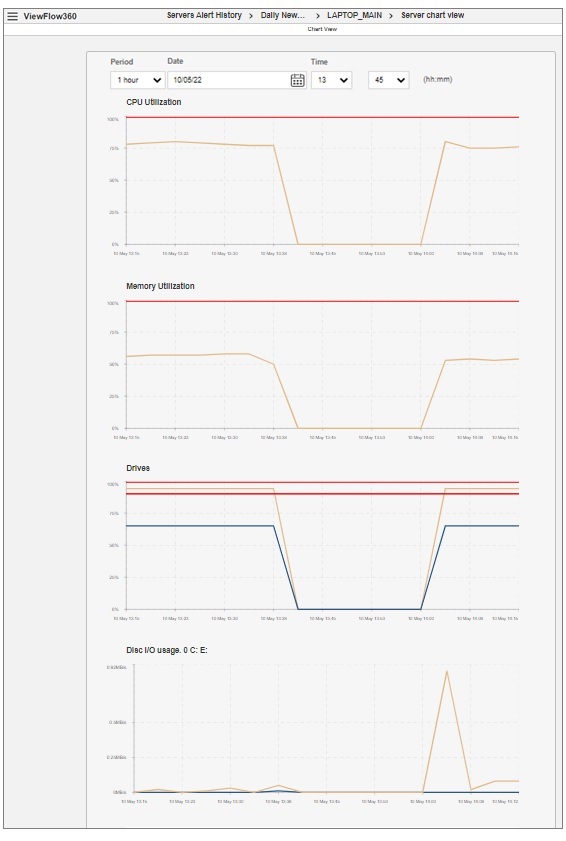

Use the Server chart view to monitor service parameters during a selected period of time.

FIELD

DESCRIPTION

PERIOD

The time period the graph displays. The default value is 1 hour.

The following are the peak values:

  • 1 hour - 12 dots, each dot per 5 minutes. This shows the peak value per minute within 5 Minutes

  • 6 hours - 24 dots, each dot per 15 minutes. This shows the peak value per minute within 15 Minutes

  • 12 hours - 24 dots, each dot per 30 minutes. This shows the peak value per minute within 30 Minutes

  • 24 hours - 24 dots, each dot per 60 minutes. This shows the peak value per minute within 60 Minutes

  • 48 hours - 24 dots, each dot per 120 minutes. This shows the peak value per minute within 120 Minutes

  • 1 week - 24 dots, each dot per 420 minutes. This shows the peak value per minute within 420 Minutes

DATE

The date of the displayed period. The default value is the current date.

Date format - as set in Account Parameters; Timezone - UTC 0.

TIME

The start time of the displayed period.

CPU UTILIZATION

Line graph showing the percentages usage of CPU for selected period.

The red line shows the percentage limit set for CPU usage for that specific server in the Server Monitoring page;

The beige line shows percentage usage of CPU, as monitored by the Agent.

Hover your mouse over the graph to see the usage at different points in time.

MEMORY UTILIZATION

The graph shows the percentage usage of the RAM for the selected period.

The red line shows the usage limit set for the memory usage in the Server Monitoring view.

The beige line shows the usage of the memory, as monitored by the Agent.

DRIVES

Line graph showing the percentages usage of Disc C and Disc D for selected period.

X axis - day and time intervals

    • Format - Day, Month, Time (in 12-hour format)

    • Intervals depend on chosen period.

Y axis - usage in percentage

The graph contains four lines:

  • Two red lines show the percentage limits set for Disc C and Disc D accordingly for the specific Server in the server monitoring page. If the values for limits of Disc C and Disc D are equal, these two lines will overlap and are displayed as one;

  • If Disk D exists, a blue line shows the percentage usage of Disc D based on the chosen period and date.

  • A beige line shows the percentage usage of Disc C based on the chosen period and date. If the usage percentages of Disc C and Disc D are equal, the blue line overlaps the beige one.

Hover your mouse over the graph to see the usage at different points in time.

DISK I/O USAGE

The Agent application monitors the Disc I/O usage (input and output traffic in MB/s) on the system it is installed on and sends HTTP requests to the Local server every interval specified in the Scanning interval field in the Root Administrator Account Parameters.

The blue line shows the sent .

The beige line shows the disk write usage.

Hover your mouse over the graph to see the traffic at different points in time.

NETWORK

The Agent application monitors the network usage in Mbps (sent and received data) on the system it is installed on and sends HTTP requests to the Local server every interval specified in the Scanning interval field in the Root Administrator Account Parameters.

The blue line shows the sent data.

The beige line shows the received data.

Hover your mouse over the graph to see the traffic at different points in time.

Servers Dashboard

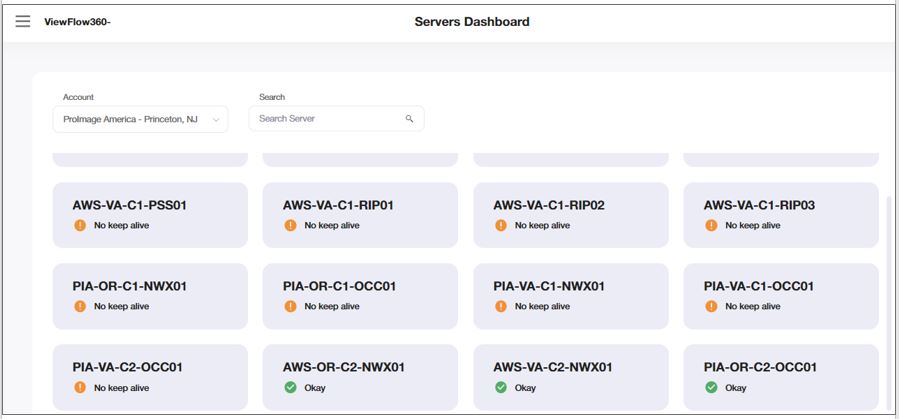

The Servers Dashboard view helps you  to review all available servers.

The Servers Dashboard is added to the "Alerts" main menu.

ViewFlow displays different icons based on the server status for each server:



The following are the priorities for statuses reflection:

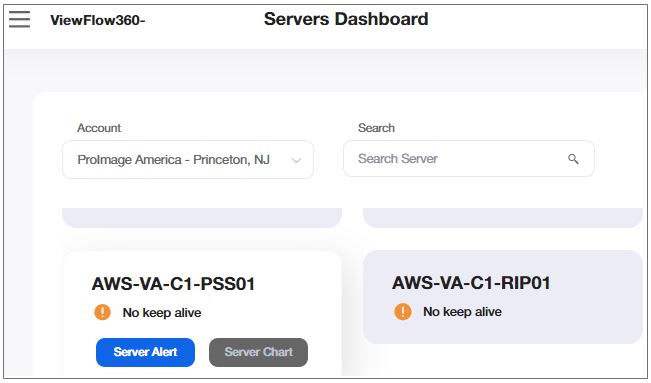

Hovering on the respective server opens the option to open the “Server alert table” and Chart” and server status gets updated with a frequency of every two minutes.



FIELD

DESCRIPTION

ACCOUNT

The Account option is visible to the following users:

  • Root Admin

  • Global User

  • Organization User (Users belong to the Organization)

  • Monitoring User (Users added to be monitored).

Search SERVER

ViewFlow displays each server on the page as a separate item. You can type a few characters of the server name that you intend to search and ViewFlow displays those server name along with server details, as appropriate.

Account Alerts

Monitor the statuses of your servers in the Account Alerts tables.

The data appears in the alphabetic order of the account names.

You can select in the Records per Page field the number of table rows you want to display on the screen at a time.

To browse through the pages, use the buttons.

You can also search a specific account in the Account search bar (dynamic search).

Each row in the table represents a account, for which you can see the name and the number of servers with active errors. For example, 3 active errors means there are three servers with active errors.

To find further details regarding the servers of a specific account, select the down arrow in the account's row.

Select the up arrow to hide the account's server table.

FIELD

DESCRIPTION

SERVER NAME

The name of the monitored server.

PRODUCT NAME

The name of the monitored software system.

MODULE

The name of the monitored module in the system.

SEVERITY

The severity defines the type of alert for each record:

Error - the account is in error state.

Warning - the account is in constant error state.

Communication - the account is in no KeepAlive for hardware.

Maintenance - the account is in maintenance state.

SERVER STATUS

The status of the monitored server:

 - server without active errors

- server with active errors

Servers Alert History

Use his alert history to view all the account's server errors for the period of time between the Start Date and the End Date.

You can display the data in the alphabetic order of the account names, by the start date or by the end date.

Select in the drop-down list in the Records per Page field, the number of table rows you want to display on the screen at a time.

FIELD

DESCRIPTION

ACCOUNT NAME

The name of the account, as defined in the Company name field in > Accounts and Users > Accounts > "Edit Account" tab for the account.

SERVER NAME

The name of the monitored server, which runs the product.

PRODUCT NAME

The name of the monitored software system.

MODULE

The name of the monitored module within the product.

SEVERITY

The severity defines the type of alert for each record:

Error - the account is in error state.

Warning - the account is in constant error state.

Communication - the account is in no KeepAlive for hardware state.

Maintenance - the account is in maintenance state.

ERROR TIME

The date and time values for the start time of an error state, in the account's time zone.

RECOVERY TIME

The date and time values for the end time of an error state, in the account's time zone.

Workflow Alert History

Use this alert view to monitor the history of all account' workflow errors for the period of time between the Start Date and the End Date.

Select in the drop-down list in the Records per Page field, the number of table rows you want to display on the screen at a time. To browse through the pages, use the buttons.

Limit the display to a specific account by typing their name in the Account Search field.

FIELD

DESCRIPTION

ACCOUNT NAME

The name of the account, as defined in the Company name field in > Accounts and Users > Accounts > "Edit Account" tab for the account.

STEP TYPE

The type of flow step as defined in > Settings > Flow Step > Workflow-Step Type.

STEP NAME

The type of flow step as defined in > Settings > Flow Step > Label.

SEVERITY

The severity defines the type of alert for each record:

Error - the account is in error state.

Warning - the account is in constant error state.

Communication - the account is in no KeepAlive for hardware.

ERROR TIME

The date and time values for the start time of an error state, in the account's time zone.

RECOVERY TIME

The date and time values for the end time of an error state, in the account's time zone.
